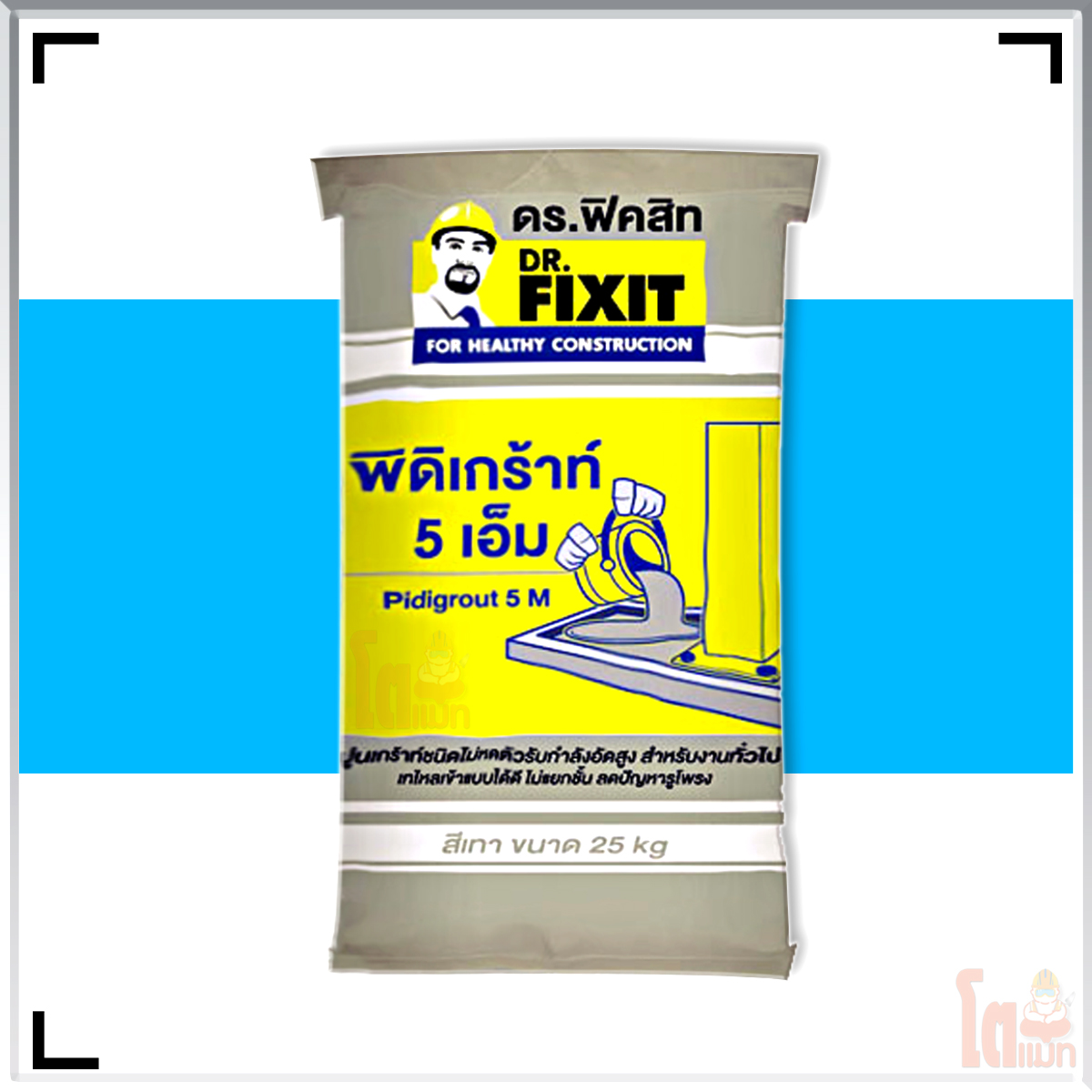

DR. Fixit Pidigrout 5M ดร.ฟิคสิท พิดิเกร้าท์ 5เอ็ม

• Cavities, gaps and recesses, anchor bolts, structural columns in pre-cast crane, machinery foundation and bridge bearing pad in pre-cast crane

• Yield 12.5 lt. per 25 kg. bag

• Arrange for PAN mixer for mixing of grout and storage vessel for storing & placement of the grout after mixing.
• Before the grouting starts ensure availability of potable mixing water, sufficent which manpowr, mound release agent, steel rod for mixing the grouts, 100-150 mm. szed stones/ pebbles, strong form work of wood/metal.
• Calculate the grout quan quantiy required as per the grouting volume and keep 10 % extra quantity to take care of wastage and contingencies.

• Clean the surface with wire brush to remove loose particles & hidden dirt on the concrete surface.
• Wash the grouting area with water and saturate it for at least 24 hours before stearting the grouting operation.
• Align the base plate using level bottles. Fix shuttering and grout pouring hopper. Seal the

• Wet the inside of the mechanically powered paddled/drum type grout mixer or container with water, before
• Starting to mix the first batch of Dr.Fixit Pidigrout 5M.
• According to the grout consistency requirement, the water addition for 25 kg Dr.Fixit Pidigrout 5M should be approximately
• Free flowing grout mix with 3.75-4.5 ltr water.
• Troweling grout mix with 3.25-3.5 ltr water.
• Add approx. 85-90% of measured water (as per water to powder ratio depending upon required/consistency) into the mixer and then slowly add the contents of Dr.Fixit Pidigrout 5M pack . Mix for 1-2 minutes and remaining approx.15-10% of measured water.
• Allow to mix for additional 2-3 minutes until a smooth, uniform homogeneous mix is achieved.

• Pour the prepared mix into the required area immediately, taking care that it is poured from one end only, with a watertight shuttering in place.
• For large pours, the grouting operation shall be done in steps, with a high head or by a grouting pump, to avoid air entrapment.
• Do not disturb the poured grout for at least 24 hours.

• Cover the exposed areas of grout by wet burlap (jute bag), ponding or curing compound to prevent cracking due to heat generation during curing of grout.

• All Tool and equipment should be cleaned immediately with water.

• Do not add extra water in any circumstances.
• Ensure that the shuttering is leak proof.
• Pour the mix only from one end under the gravity of 6 to 8 inches head.
• Soak the area with water for 24 hours before grouting.
• For greater depth fill (more than 75 mm.) clean, prewashed, crushed 10 mm. down aggregates can be added (approx imate 10kg/25kg bag of Dr.Fixit Pidigrout 5M)
• Do not undertake grouting in high temperature conditions.

• Maximum 1 year in sealed container kept under shed area.

• As with all chemical products, caution should always be exercised.
• Protective clothing such as gloves and goggles should be worn.
• Treat any contact to the skin or eyes with fresh water immediately.
• Should any of the products be accidentally swallowed, do not induce vomiting but call for medical assistance immediately.
